Anatomy of the Foot and Ankle & Common Problems

The anatomy of the foot is incredibly complex. This introduction to the anatomy of the foot and ankle will be very general and highlight the main structures.

Bones and Joints of the Foot and Ankle

The Ankle

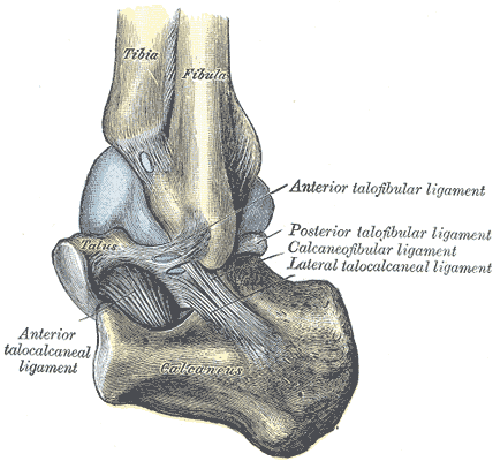

Ankle Joint - lateral

Lateral side of the ankle Joint capsule

The ankle joint or tibiotalar joint is formed where the top of the talus (the uppermost bone in the foot) and the tibia (shin bone) and fibula meet. The ankle joint is both a synovial joint and a hinge joint.  Hinge joints typically allow for only one direction of motion much like a door-hinge.  Consequently, the ankle joint mainly only allows for upward (toes-up; or dorsiflexion) and downward (toes down; or plantarflexion) movements of the foot in relation to the tibia.

Learn About Ankle Sprain

Learn About Achilles Tendonitis – Symptoms, Diagnosis and Treatment

The ankle joint is actually more stable in dorsiflexion (toes up) than in plantarflexion (toes down). Other movements, such as tilting and rotation take place in and around the joints in the foot itself (see subtalar joint below).

Similar to other articular joints, the bones of the ankle joint are lined with articular or hyaline cartilage. This articular cartilage is incredibly smooth and allows for very fluid and pain-free motion of the ankle joint.

Strong ligaments on either each side of the ankle joint give additional stability to the joint. The lateral (outer) ankle is kept stable by the lateral ligament complex which includes the: anterior talofibular ligament (ATFL), posterior talofibular ligament (PTFL), and the calcaneofibular ligament (CFL). As is indicated in their respective names, each ligament connects the fibula to one of two bones in the foot (talus or calcaneus).  These ligaments are commonly injured in ankle sprains in the setting of a twisting injury.

The very robust deltoid ligament complex helps to stabilize the inner side of the ankle (or medial side or the ankle). Because it is so strong, it is less commonly injured than the lateral ligamentous complex (described above). In fact, in the setting of an ankle injury, oftentimes, the portion of the tibia that the deltoid ligament complex is attached to (the medial malleolus) is oftentimes more likely to break than the deltoid itself.

As is the case with all joints, an articular capsule surrounds the tibiotalar joint as well. A synovial membrane lines this capsule and is responsible for producing synovial fluid.  Synovial fluid is a lubricant which helps to promote very smooth and pain-free motion at the ankle joint.

The arteries supplying the ankle joint are branches of the anterior and posterior tibial arteries as well as the peroneal artery.

The nerves of the ankle are derived from the deep and superficial peroneal nerves, the tibial nerves, and the sural and saphenous nerves.

The Foot

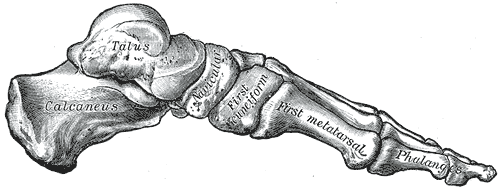

Bones of the foot as seen from the medial (arch) side.

The foot is a firm platform that support the weight of the body.  It is made up of many bones including the tarsal bones, the metatarsal bones, and the phalanges (described in more detail below). Many of the bones, particularly of the midfoot, are solidly reinforced with very sturdy ligaments which limit motion.  Consequently, when compared to the hand, despite having similarities in structure, the foot is much less mobile. For instance, while analogous bones do exist between the hand and the foot, such as the metatarsal bones and the phalanges (analogous to the metacarpal bones and phalanges of the hand) the bones of the feet are smaller, more sturdy in nature, and have limited motion when compared to the bones of the hand. This is again a consequence of design for function — the purpose of the foot is much different than that of the hand.

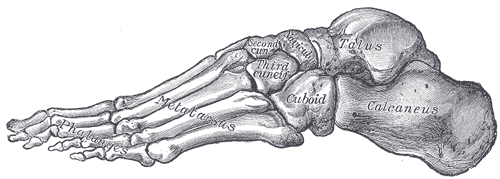

Bones of the foot from the lateral side (side opposite the arch.)

In discussion of the bones of the foot, it is important to discuss the subtalar joint.  It is a common misconception that the tibiotalar joint, in addition to allowing up/down motion of the ankle, allows for side to side motion of the ankle in relation to the leg. However, this side to side motion of the ankle is actually a function of the subtalar joint.  This joint is made up of the talus and the calcaneus (the heel bone). It is important to remember this, as it is actually a separate joint that can develop osteoarthritis independently of the tibiotalar joint.

Below are slightly more detailed descriptions of the bones of the foot.

Tarsal Bones

The tarsal bones work together as a group. The way these bones fit together and interact with one another is very interesting. When the muscles of the foot and leg twist the foot in a particular direction, the tarsal bones lock together to form a very rigid construct. This occurs during the phase of walking called toe-off, which allows you to propel yourself forward without your foot collapsing beneath you.

On the other hand, when muscles pull in the opposite direction, the bones unlock, allowing the foot to conform to whatever surface the foot is in contact with.

There are seven tarsal bones: the calcaneus, talus, cuboid, navicular, and the first, second, and third cuneiforms.

The calcaneus (heel bone) is the largest of the tarsal bones. It transmits the weight of the body to the ground and serves as the attachment point for the muscles of the calf. The calcaneus joins with the talus and cuboid.

The talus (ankle bone) is the second largest of the tarsal bones and sits atop the calcaneus to form the subtalar joint. It is joined on either side with the tibia and fibula to form the tibiotalar joint. The talus forms a joint with four bones: tibia, fibula, calcaneus, and navicular.

The cuboid is on the lateral side (opposite the arch of the foot) and in front of the calcaneus.

The navicular is on the medial (inner) side of the foot, between the talus and the cuneiform bones in front. The navicular forms joints with four bones: the talus and the three cuneiforms.

The first cuneiform forms a joint with four bones: the navicular, second cuneiform, and first and second metatarsals. The second cuneiform forms joints with four bones: the navicular, first and third cuneiforms, and second metatarsal. The third cuneiform forms joints with six bones: the navicular, second cuneiform, cuboid, and second, third, and fourth metatarsals.

Metatarsal Bones

There are 5 metatarsal bones that are numbered 1-5 starting from the inner (medial) aspect of the foot. I.e. the metatarsal associated with the great toe is the labeled the 1st metatarsal.

There is a fairly rigid connection between the metatarsals and tarsal bones.  Consequently, not much movement occurs here at what is considered the midfoot. This is important to bear in mind in the setting of midfoot arthritis. i.e. If an individual is experiencing significant pain from midfoot arthritis, not much foot motion is lost following a mid-foot fusion (the surgical procedure of choice for this condition).

Phalanges

The phalanges are the small bones of the toes. The joints that are formed between the metatarsals and the first phalanx of each toe is called a metatarsophalangeal joint. These joints form the “ball” of the foot, and normal movement in these joints is very important for a normal walking pattern. The most important of these for walking is the 1st metatarsophalangeal joint (the great toe). Furthermore, common problems of the foot usually involve this joint. Osteoarthritis can develop here which can be quite debilitating (this is called hallux rigidus).  Gouty flares tend to involve this joint as well. Finally, a bunion (also called hallux valgus) can also develop here.

The phalanges of the foot are analogous to the phalanges in the hand in terms of their number and general arrangement: there are two phalanges in the great toe, and three in each of the other toes. They differ from the hand, however, in their size and shape. The bodies are shorter in length and tend to be much wider as well.

Soft Tissues of the Foot and Ankle

The soft tissues of the foot and ankle include ligaments, tendons, fascia, nerves and blood vessels. Some of these structures were briefly discussed before.

Ligaments

Medial Ligaments of the Foot

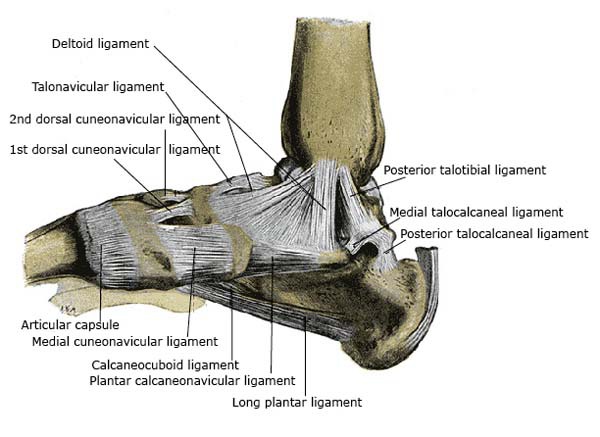

Medial Ligaments of the Foot (arch side of the foot)

Ligaments are strong, dense, and flexible bands of fibrous connective tissue. The function of ligaments is to attach bones to bones and help to stabilize them. Ligaments are often named after the bones they join together. The name may also contain a directional description. For example, the posterior talotibial ligament is on the posterior side (back side) of the foot and connects the talus and the tibia.

As mentioned earlier, two important ligamentous complexes of the ankle included the strong deltoid ligament complex on the medial (or inner) aspect of the ankle and the three lateral (outer ankle) ligaments: the anterior talofibular ligament (ATFL), the posterior talofibular ligament (PTFL), and the calcaneofibular ligament (CFL).

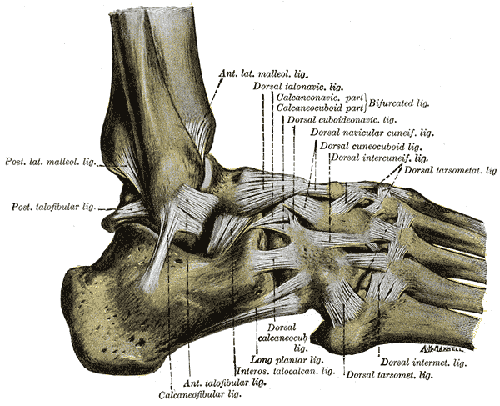

Ligaments of the lateral side of the foot

Muscles

There are many muscles that help to move and support the ankle and foot. The strong muscles that move the ankle originate in the leg. The most obvious of these are the gastrocnemius and soleus muscles, which are the strong calf muscles that allow you to push up on your toes. The other muscles of the calf that are deeper within the leg are the flexors of the toes (including the flexor hallucis longus and flexor digitorum longus) as well as the larger posterior tibialis muscle which is a strong inverter (swings the ankle inwards) of the ankle and is important to the maintenance of the normal arch of the foot. It is also the muscle that helps to “lock” the tarsal bones of the foot during toe-off (as described above) so you can appropriately propel yourself forward when you walk without your feet collapsing underneath you. Consequently, people who have deficiency of the posterior tibialis tendon (also known as posterior tibial tendon insufficiency) are unable to toe-off and also become flat-footed.

On the outer leg you have the peroneal muscles which include the peroneus (also called fibularis — because it originates on the fibula) longus and the peroneus (or fibularis) brevis muscles.  These two muscles allow you to evert the ankle i.e. swing it outwards. The tendons of these muscles wrap around the lateral malleolus (around the far end of the fibula) and can actually become irritated or torn here, leading to symptoms of pain.

On the front of the leg you have the extensors of the toes (such as extensor hallucis longus, extensor digitorum longus) and the anterior tibialis muscle – the strongest dorsiflexor of the ankle. i.e. weakness of this muscle or tearing of its tendon leads to a foot-drop. The peroneus tertius muscle also is located on the front of the leg.

There are many muscles within the feet itself. However, a more detailed description of these muscles is beyond the scope of this article.

Tendons

Tendons are elastic tissues made up of collagen. They are the continuations of muscles and allow them to firmly connect to bones. There are numerous tendons around the ankle that also help to stabilize and ultimately move the ankle. They are associated with muscles discussed in the section above.  One of the most important tendons is the achilles tendon. This is the tendon on the back of the ankle that represents the attachment of the calf muscles (the gastrocnemius and soleus muscles) to the calcaneus. This tendon can become torn or irritated, causing weakness and/or pain.

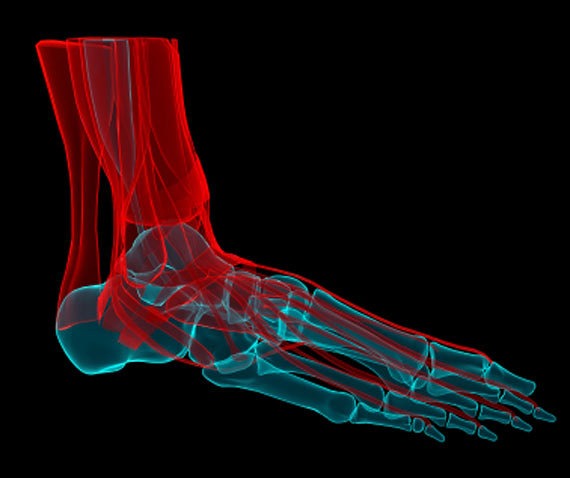

Bones and tendons of the foot

Fascia

Fascia is a broad fibrous sheet-like structure that is found all over the body.  In most situations, it helps to separate soft tissue layers from one another and add a bit of stability as well.  In the foot, the plantar fascia is an important structure on the bottom of the foot that is important for both the normal function of the foot and for maintaining the normal arch of the foot.  Importantly, it is a common cause of heel pain (also known as plantar fasciitis).

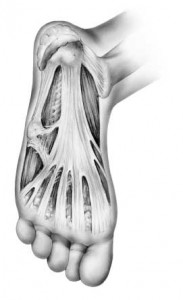

plantar-fascia on the bottom of the foot

Common Problems in the Ankle Joint and Foot

  • Plantar fasciitis
  • Calcaneal stress fractures
  • Ankle fracture
  • Ankle ligament sprain
  • Achilles tendonitis
  • Achilles tendon rupture
  • Peroneal tendonitis / tears / subluxation
  • Bunion
  • Tibiotalar, subtalar, midfoot arthritis
  • Hallux rigidus
  • Hammer toes
  • Tarsal tunnel syndrome
  • Flat feet
